MXm and MXq can be used on track thanks to the integrated GPS.
This is used for: |
|
 |
Lap time calculation |
|
|
Speed calculation |
|
|
Predictive lap time calculation |
|
|
| Optionally, a GPS09c can also be connected as an external device. |
|
|
 |
|
|
To calculate these data the system needs to know the start/finish line coordinates of the racetrack you are racing on.

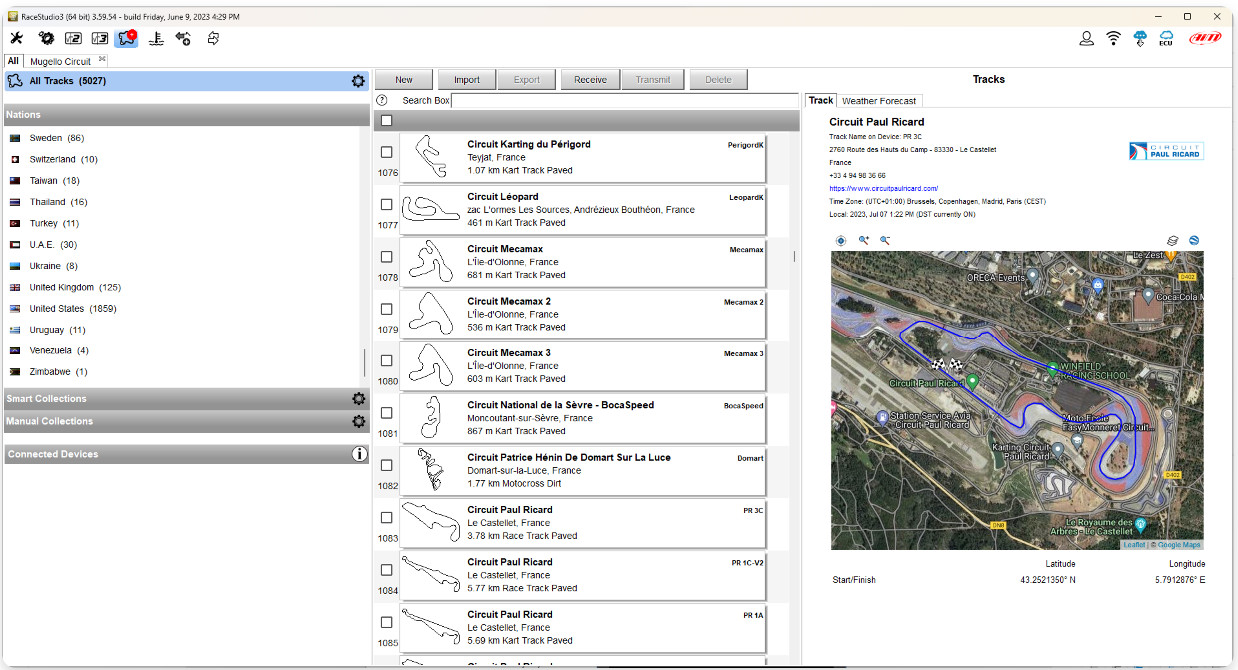

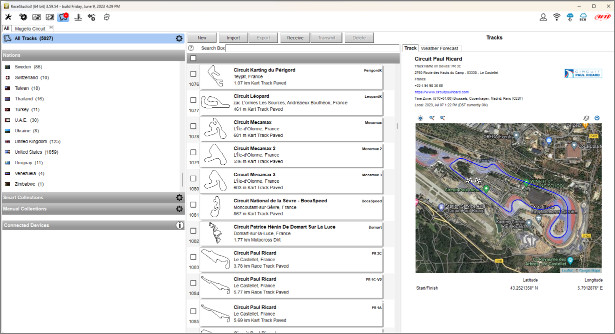

MXm and MXqs come with a long list of the world main tracks, constantly updated by our technicians and automatically loaded to your PC when you run RaceStudio 3 software and a connection to the Internet is available. |
|
|
 |
|
|
|
|
|
|
| Automatic |
|
| MXm and MXq automatically recognize the track you are running on, loads the start/finish line and the possible splits coordinates and calculates lap and split times without optical/magnetic receiver. This is the best mode in most cases. |
|
| Manual |
|
| Allows to manually select the track from the internal database. This mode is to be preferred when multiple track configurations are available nearby. In this case MXm/MXq would anyway recognize the track but would need at least one complete track lap. |
|
| You can scroll the list of available tracks choosing among these options: |
|
|
nearest: shows only tracks in a 10 km distance |
|
|
all: shows all tracks stored in the system in alphabetical order |
|
|

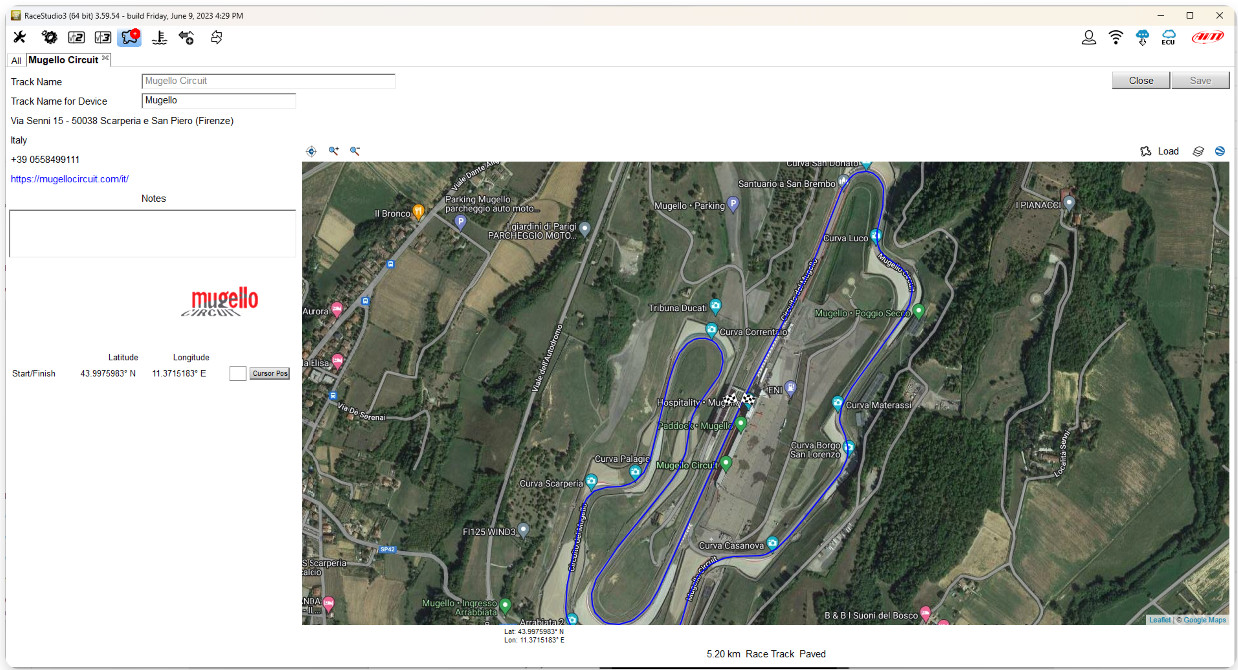

custom: shows only the tracks you have previously created with RaceStudio 3 software |
|
|
|
|
|
|
|
|
|
|
|
